Our Gas Dilution System delivers precise, real-time gas blending for analytical calibration and process simulation. Ideal for R&D and industrial testing. Achieve stable concentrations with fast response times.

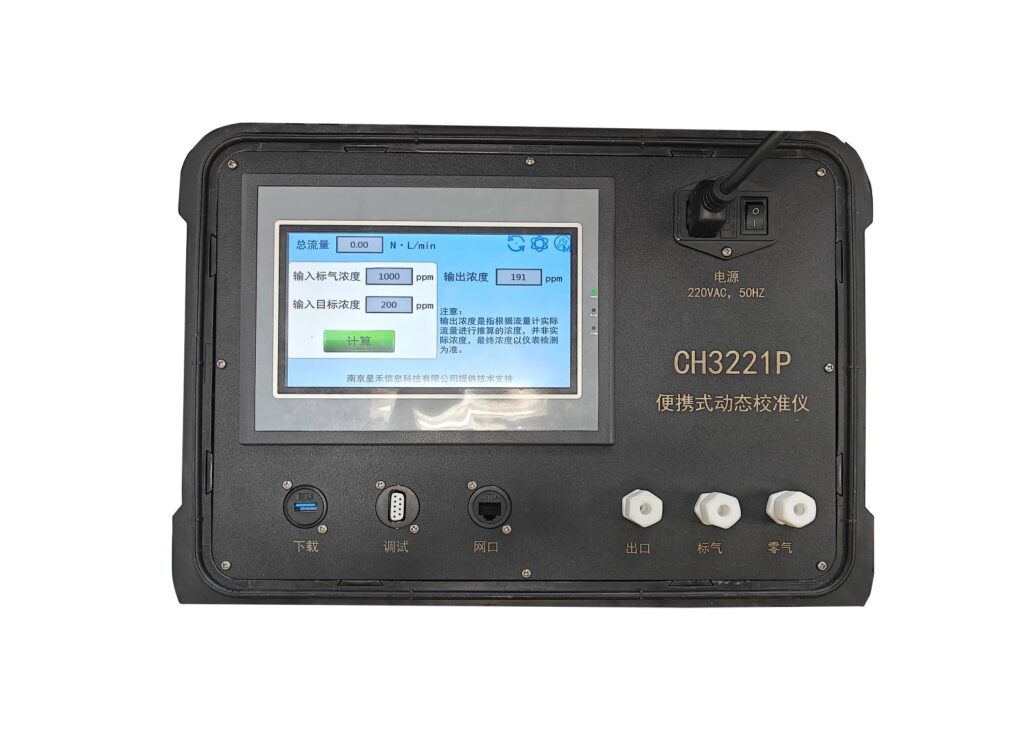

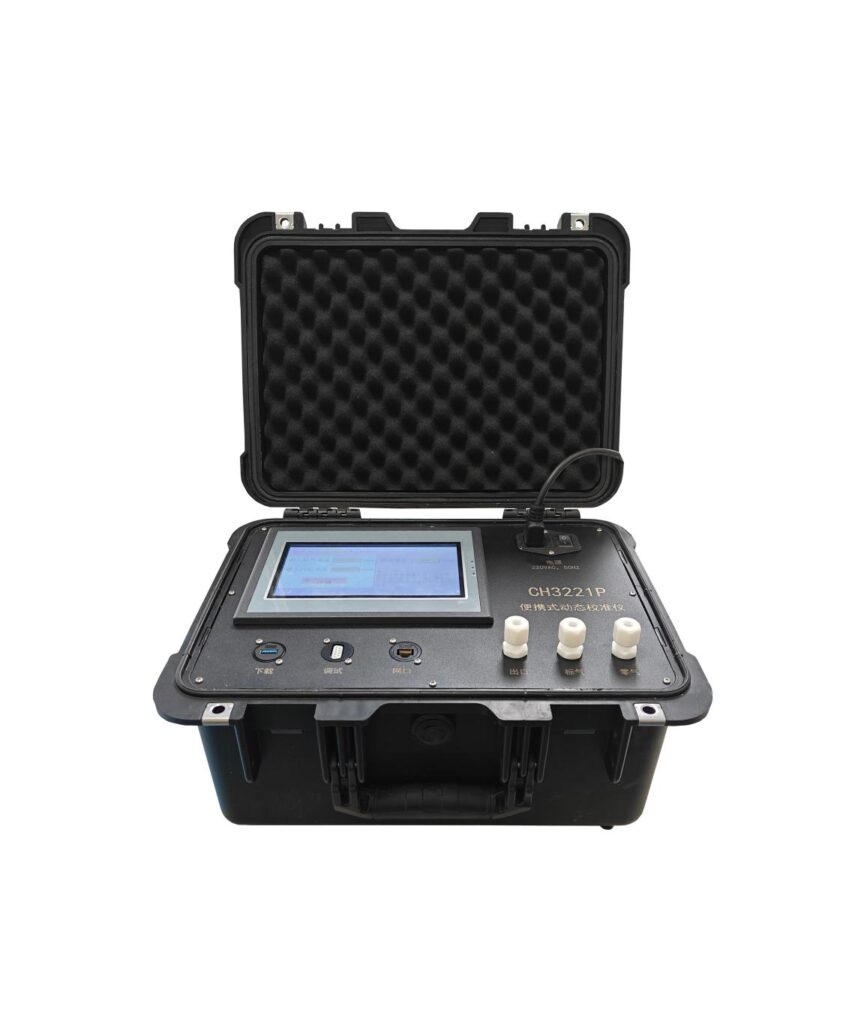

In the world of analytical chemistry and process engineering, accuracy depends on the quality of your gas mixtures. The [Your Brand Name] Gas Dilution System is a state-of-the-art solution designed to generate precise gas concentrations on demand. Unlike static mixing methods, this dynamic gas blender utilizes advanced mass flow control technology to create continuous, variable gas compositions, making it an essential tool for instrument calibration, catalyst testing, and environmental monitoring.

1. Core Technology & Precision:

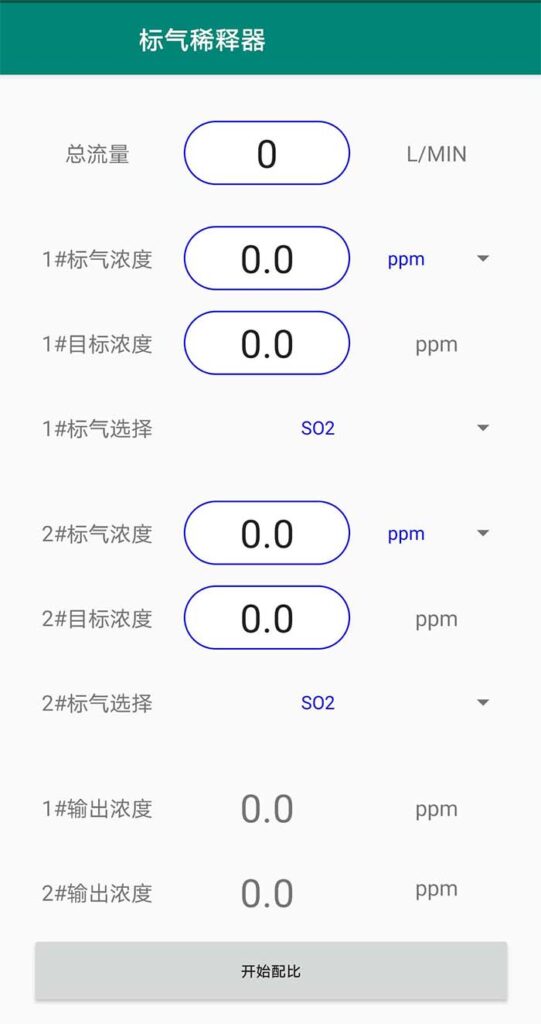

At the heart of our gas dilution system lies a network of high-speed proportional valves and thermal mass flow sensors. This setup allows for real-time closed-loop control, ensuring that the desired output concentration is maintained even if the inlet pressure fluctuates. Whether you need trace-level ppm mixtures or high-percentage blending, the system guarantees linearity and repeatability. The intuitive software interface allows users to define complex gas profiles, from simple binary mixes to multi-component simulations, with just a few clicks.

2. Key Applications in Industry and Research:
This Gas Dilution System is engineered to meet the rigorous demands of various sectors. In petrochemical research, it simulates refinery streams for catalyst evaluation. For environmental monitoring, it serves as a precise gas calibrator for ambient analyzers and emissions testing equipment. Additionally, it is widely used in food packaging (MAP) and semiconductor manufacturing, where ultra-high purity and contamination-free mixing are critical.

3. Advantages Over Traditional Dilution Methods:
Traditional static dilution bags or manual mixing are time-consuming and prone to error. Our Gas Dilution System offers significant advantages: real-time adjustability allows you to change concentrations instantly without rebuilding mixtures; minimal gas waste reduces the cost of expensive calibration gases; and Remote automation enables integration into larger test benches via RS-232, Ethernet, or analog I/O. This makes it a superior choice for laboratories looking to optimize workflow efficiency.

4. Technical Specifications and Options:

• Channels: 2 to 8 channels (expandable)

• Flow Range: From 5 ml/min to 50 SLPM per channel (customizable)

• Dilution Ratio: Up to 1000:1

• Accuracy: ±0.5% of set point (including linearity)

• Wetted Materials: Stainless Steel 316L or PTFE for corrosion resistance

• Output Manifold: Heated or unheated options available to prevent condensation

Why Choose Our Solution?
Choosing the right gas dilution solution is crucial for maintaining data integrity. Our Gas Dilution System stands out due to its rugged construction and user-friendly design. We offer full system validation support, including NIST-traceable calibration certificates. Whether you are conducting breakthrough experiments or performing routine quality control, our system provides the reliability needed to ensure your results are always accurate and reproducible.
